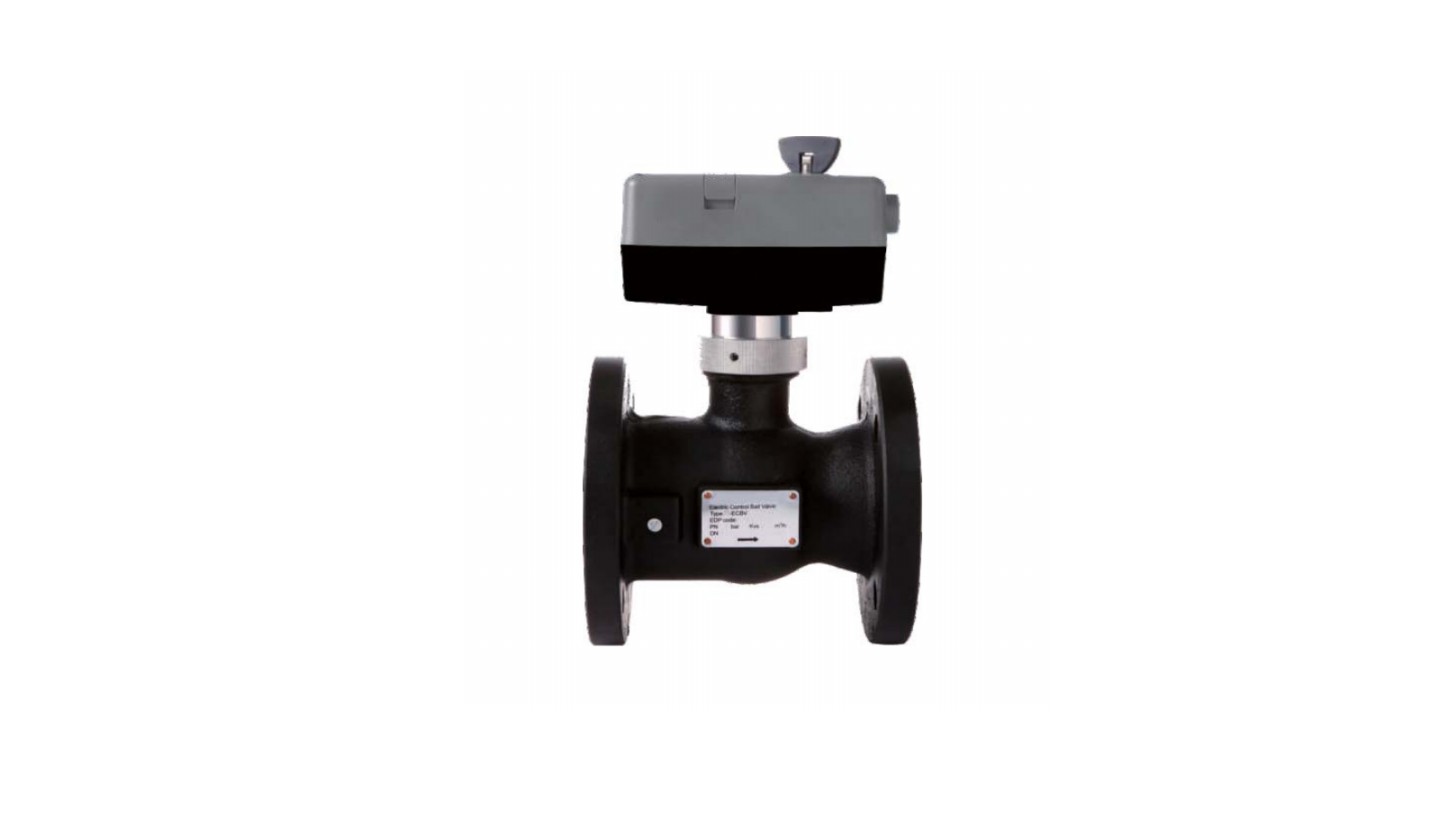

Two way electric temperature control valve
Reference data sheet
DN65-DN150
PN16
0℃-85℃
Ductile iron
Shell: 24 bar Seat:17.6bar
Flanged to ANSI B16.1 Class 125 and BS 1560 3.2
summary
The electric two-way temperature control valve is applied to the regulation and control of air conditioning and heating water system. The actuator receives analog signal and cooperates with DDC controller to realize automatic temperature control.
Product features:
The actuator and valve are connected by flange, which is convenient for disassembly and assembly;
AC voltage bidirectional synchronous motor;
The pressure difference between the front and rear is below 600kpa to realize zero leakage shutdown;
In place power-off function, long service life of actuator.
