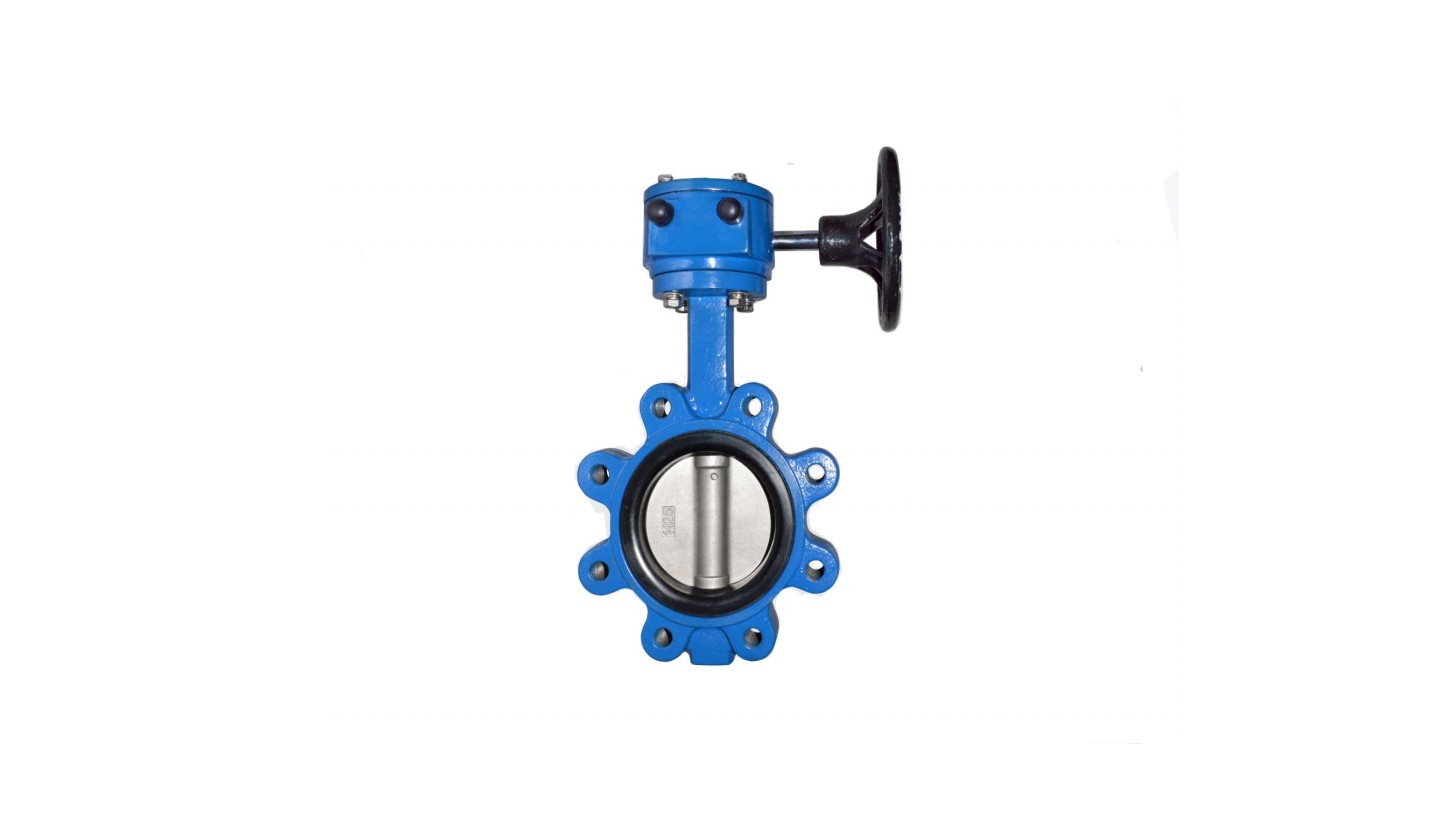

Turbine lug butterfly valve
Reference data sheet
DN50-DN600
PN16
0℃-85℃
Ductile iron
Shell: 24 bar Seat:17.6bar
End connections compatible with BS EN1092-2 PN16 flanges.
summary
This series of butterfly valves adopt medium linear design. The main structure of the valve is composed of valve body, butterfly plate, valve seat, valve stem and transmission operating mechanism. The valve seat adopts detachable structure. It can be widely used in water supply and drainage, construction, air conditioning, petrochemical, water and electricity, papermaking and other fluid pipelines as a regulating or intercepting device.
Features & Benefits：
Valves are suitable for use with flanges conforming to BS EN 1092-2 PN16
Valve to BS EN593
Ductile Iron, Stainless Steel, and Aluminium Bronze Disc Options
EPDM and Nitrile Seat Liner Options
420 Stainless Steel Shafts for superior strength
