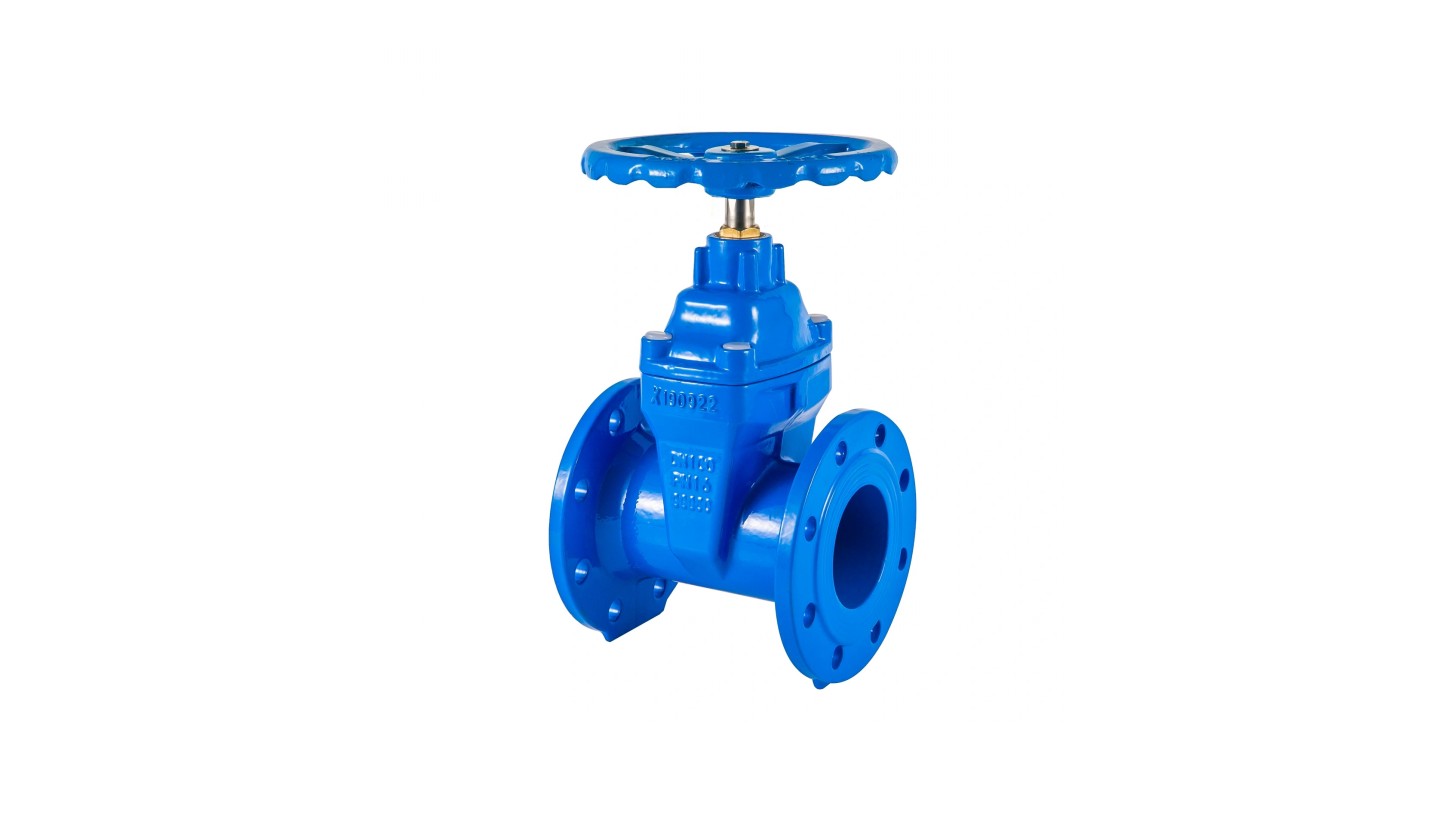

Non rising stem handwheel type elastic seat seal gate valve

Reference data sheet

DN50-DN600

PN16

0℃-85℃

Ductile iron

Shell: 24 bar Seat:17.6bar

Non rising stem handwheel type elastic seat seal gate valve

Flanged to ANSI B16.1 Class 125 and BS 1560 3.2

summary

The Non rising lever handwheel type elastic seat seal gate valve adopts the straight through channel design, and the high-performance rubber is fully covered with the gate, so the sealing is reliable and the operation is easy. It is mainly used in domestic water system, water supply and drainage system, sewage treatment system, etc. it is used as a cut-off device on the fluid transmission pipeline of construction, urban environmental protection, petrochemical, electric power and other industries (not applicable to throttling).

Product features:

Integral rubber covered valve disc;

Fixed disc nut;

Flat seat;

The shaft seal adopts three O-rings;

Full bore design, low water loss;

Non toxic epoxy resin electrostatic coating.
