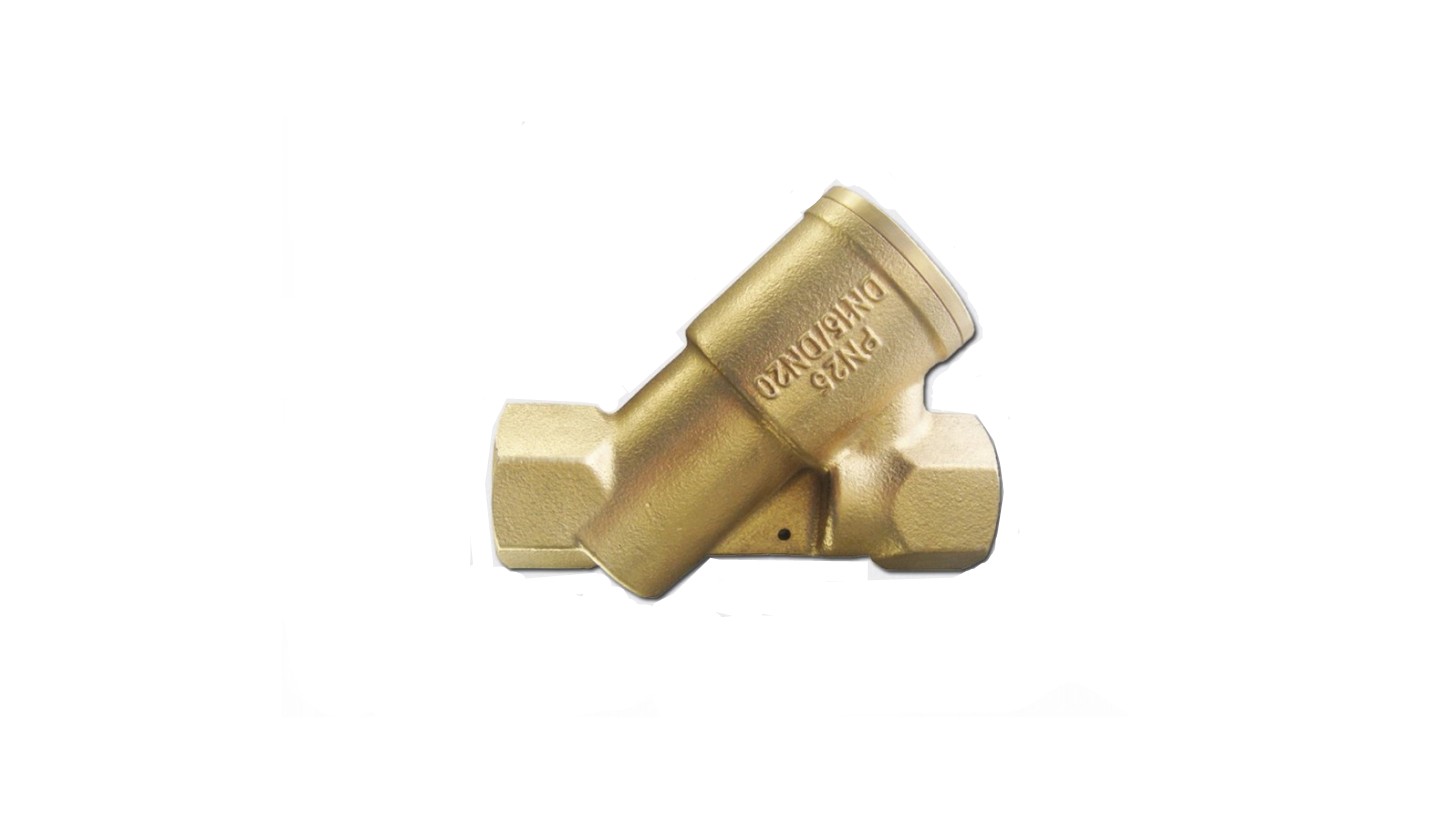

Dynamic flow balancing valve

Reference data sheet

DN15-DN40

PN25

0℃-110℃

brass

Shell: 24 bar Seat:17.6bar

Dynamic flow balancing valve

Taper threaded BS EN 10266 (ISO 7-1) formerly BS 21

summary

The dynamic flow balance valve is mainly used to solve the problem of hydraulic imbalance in fluid transmission and distribution network. When the system pressure fluctuates in the range of working pressure difference, it can dynamically balance this change and keep the flow constant of the pipeline.

characteristic:

Dynamic balance: when the pressure difference of the system fluctuates, the valve core automatically adjusts the opening of the variable flow passage, which can realize the constant flow in the controlled area

-Accurate calibration of the spool ensures a constant flow rate within ± 5% of the deviation

-Flow factory setting, each size has multiple differential pressure range to choose from

-There is no need to debug on site and reduce the labor cost

-After the system changes, there is no need to rebalance the system

working principle:

-When the pressure difference is lower than the minimum working pressure difference, the valve core is fully open, which is consistent with the function of orifice plate, and the flow rate increases with the increase of pressure difference

-When the pressure difference is within the range of working pressure difference, the valve core changes the opening according to the change of system pressure difference, so as to ensure that the design flow changes within ± 5% deviation range

-When the pressure difference is greater than the maximum working pressure difference, the opening of valve core is the smallest, which is consistent with the function of orifice plate, and the flow rate increases with the increase of pressure difference

-In the range of working pressure difference, the flow rate remains constant
