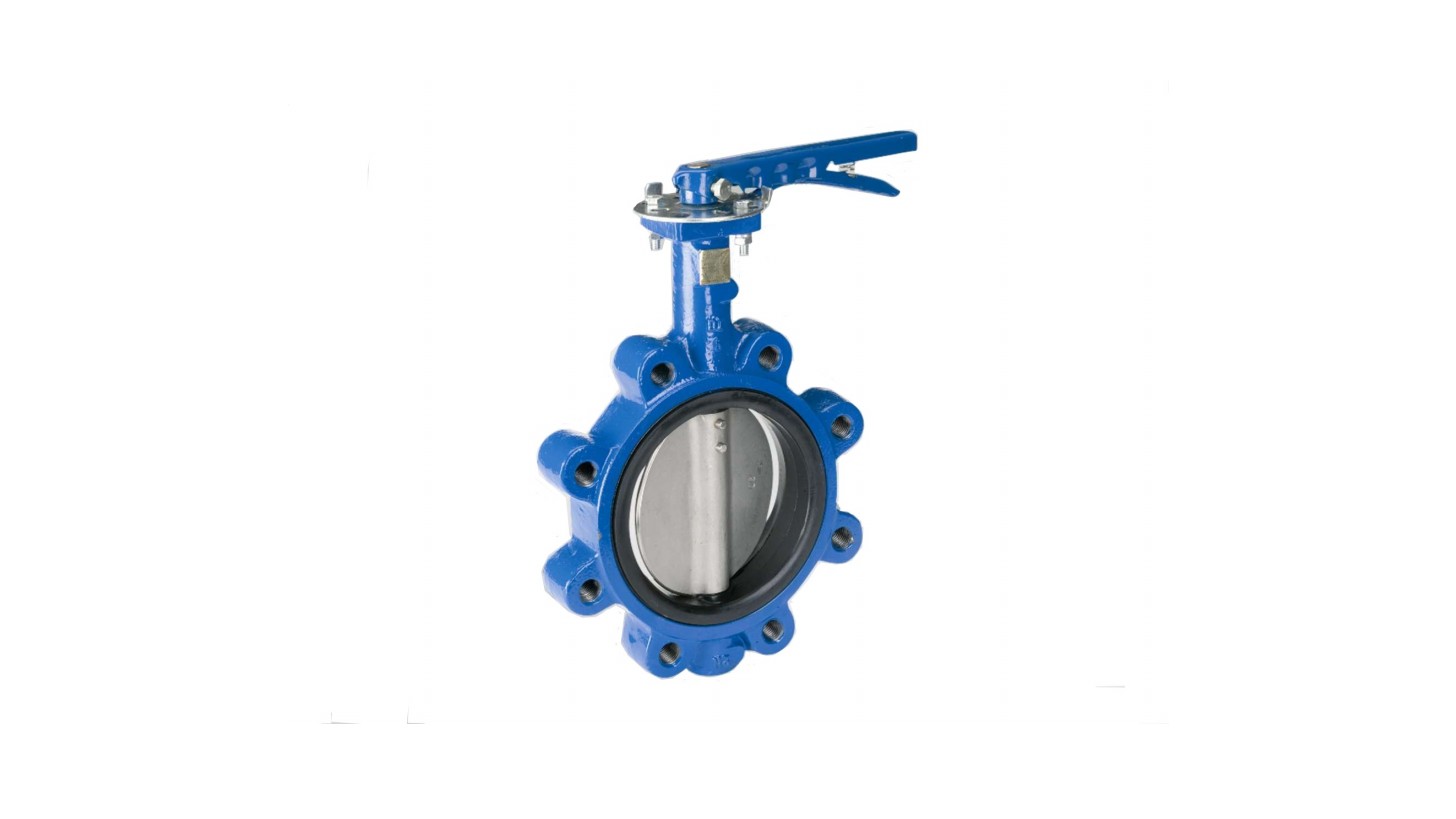

Double clip lug butterfly valve

Reference data sheet

DN50-DN200

PN16

0℃-85℃

Ductile iron

Shell: 24 bar Seat:17.6bar

Double clip lug butterfly valve

End connections compatible with ANSI B16.1 Class 125 flanges.

summary

This series of butterfly valves adopt medium linear design. The main structure of the valve is composed of valve body, butterfly plate, valve seat, valve stem and transmission operating mechanism. The valve seat adopts detachable structure. It can be widely used in water supply and drainage, construction, air conditioning, petrochemical, water and electricity, papermaking and other fluid pipelines as a regulating or intercepting device.

Features & Benefits:

Valves are suitable for use with flanges conforming to ANSI B16.1 Class 125

Valve generally conforms to MSS SP 67

Ductile Iron, Stainless Steel, and Aluminium Bronze Disc Options

EPDM and Nitrile Seat Liner Options

420 Stainless Steel Shafts for superior strength
